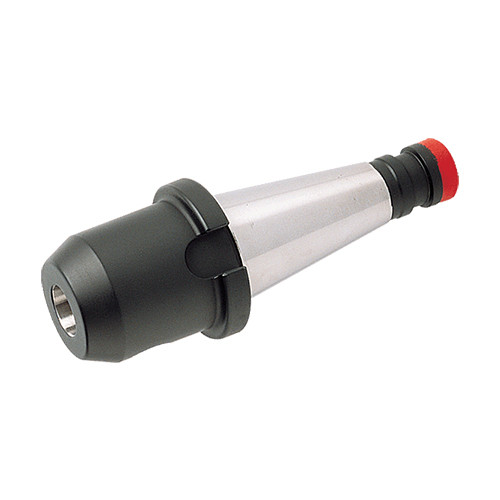

DIN6359 / DIN 1835 form B Weldon end mill holders with DIN 2080 taper shanks
Additional information
Weight
4.2000 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 32 mm
Connection Retention Knob Thread Size (CRKS): M24
Body Diameter (BD): 72 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 80 mm
Body Material: Steel
Nose Length: 64.8 mm
Unit: M
Application:, DIN 2080
