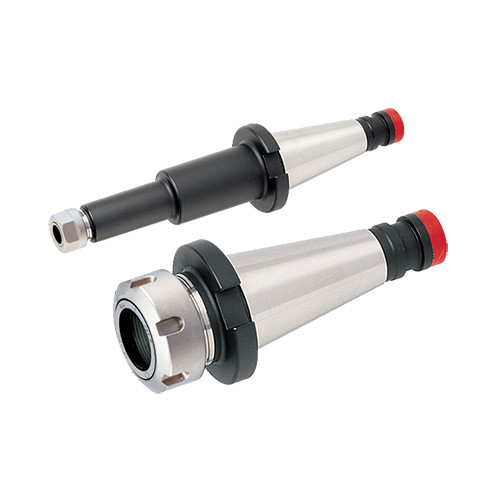

DIN 6499 ER collet chucks with DIN 2080 taper shanks
Additional information
Weight
3.5500 kg
barcode
Additional Information

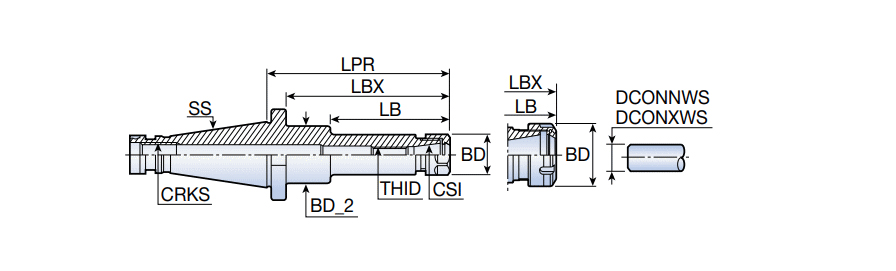

Connection Size (CSI): ER20
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Diameter (BD): 34 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 13 mm
Body Length Maximum (LBX): 160 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 50 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M12
Body Material: Steel

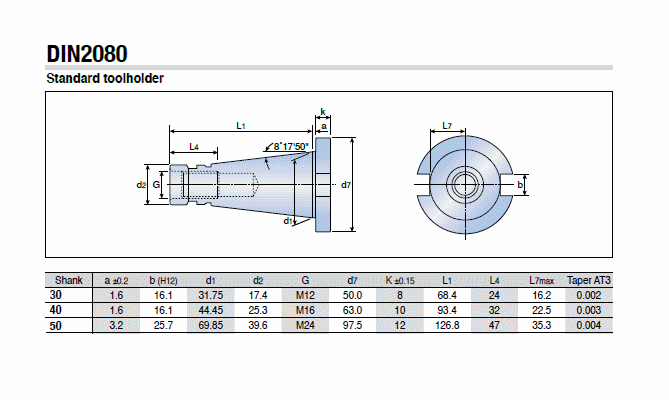

Application:, DIN 2080, Unit: M
Nose Length: 144.8 mm
