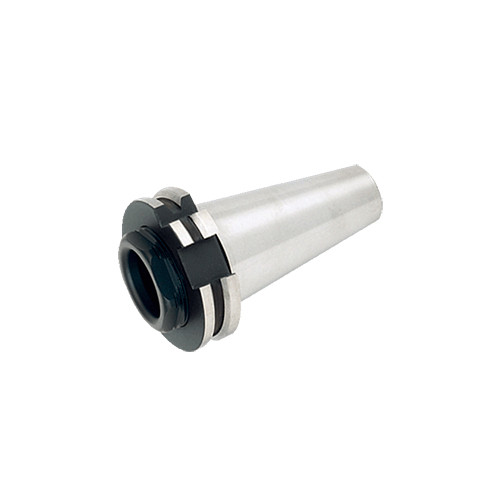

Short DIN6499 ER collet chucks with DIN 69871 form AD taper shanks
Additional information
Weight
0.6900 kg
barcode
Additional Information
Connection Size (CSI): ER32
Nose Length: 6 mm
Body Diameter (BD): 40 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Length Maximum (LBX): 28.6 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M16
Body Material: Steel
Application:, DIN 69871, Unit: M
