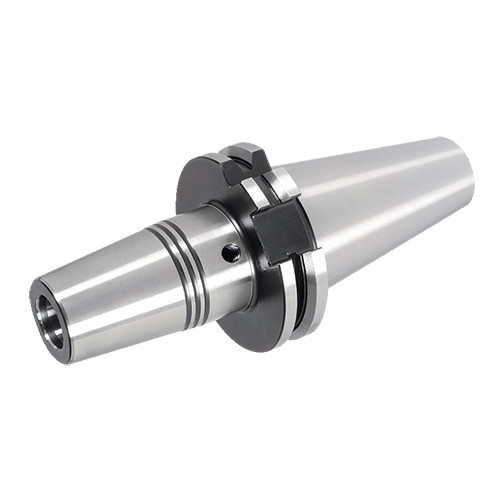

Thermal shrinking chucks with DIN 69871 form AD taper shanks for solid carbide and steel shank tools
Additional information
Weight
1.1200 kg
barcode
Additional Information
Connection Diameter Workpiece Side (DCONWS): 16 mm
Clamping Length Workpiece Side (LSCWS): 50 mm
Shank Size (SS): 40 mm
Shank Length (LS): 68.4 mm
Body Length (LB): 44.2 mm
Usable Length (LU): 80 mm
Body Diameter_2 (BD_2): 27 mm
Measurement Type: Metric
Application:, DIN 69871, Body Material: Steel
Thread Designation Inside (THID): M12
Unit: M
