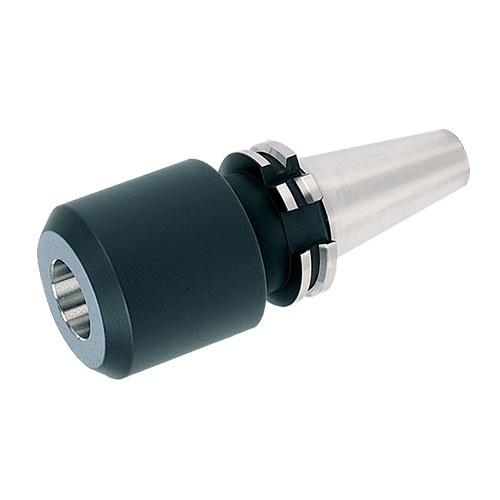

Whistle notch DIN 6359 / DIN 1835 form E end mill holders with DIN 69871 form AD taper shanks
Additional information
Weight
3.9400 kg
barcode
Additional Information
Shank Type: Weldon
Measurement Type: Metric
Connection Diameter Workpiece Side (DCONWS): 25 mm
Connection Retention Knob Thread Size (CRKS): M24
Body Diameter (BD): 65 mm
Shank Size (SS): 50 mm
Body Length Maximum (LBX): 80 mm
Thread Size: M20X1.5
Nose Length: 60.9 mm
Body Material: Steel
Application:, DIN 69871, Unit: M
