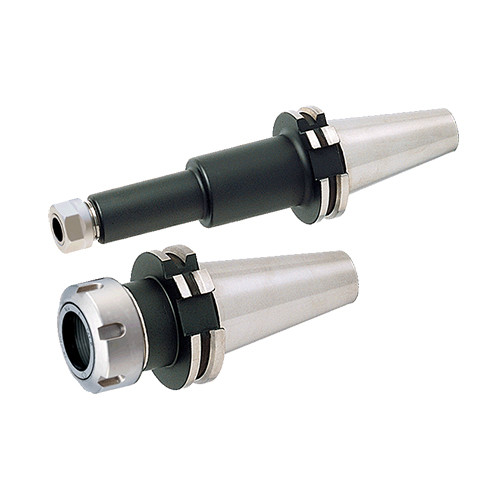

DIN 6499 ER collet chucks with DIN 69871 form ADB taper shanks
Additional information
Weight
3.8650 kg
barcode
Additional Information
Connection Size (CSI): ER40
Connection Diameter Minimum Workpiece Side (DCONNWS): 3 mm
Body Diameter (BD): 63 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 26 mm
Body Length Maximum (LBX): 100 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 50 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M28X1.5
Body Material: Steel
Application:, DIN 69871, Unit: M
Nose Length: 80.9 mm
