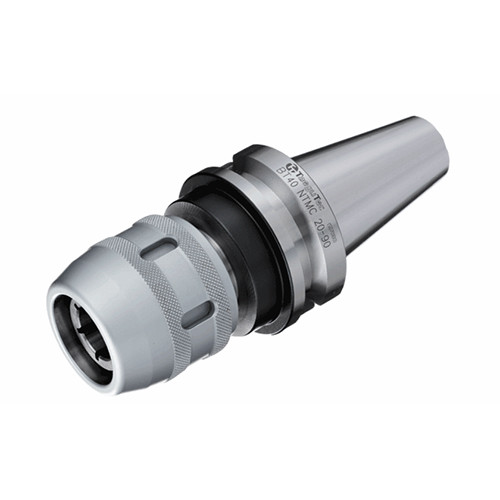

Milling chucks with DIN69871 Form AD Taper shank with coolant hole
Additional information
Weight
4.5250 kg
barcode
Additional Information

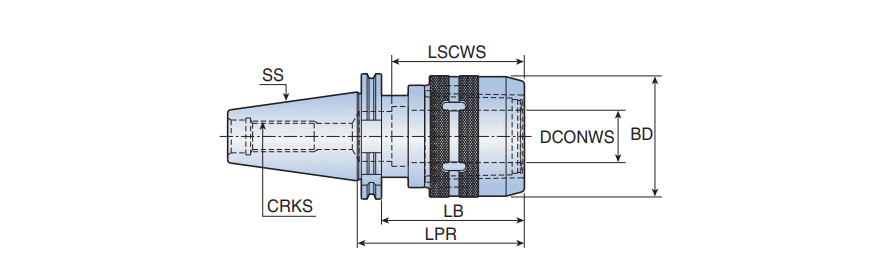

Connection Diameter Machine Side (DCONMS): 50 mm
Application:, DIN 69871, Body Diameter (BD): 74 mm
Measurement Type: Metric
Protruding Length (LPR): 105 mm
Body Material: Steel
Connection Diameter Workpiece Side (DCONWS): 32 mm
Clamping Length Workpiece Side (LSCWS): 110 mm
Shank Type: Round
Unit: M
