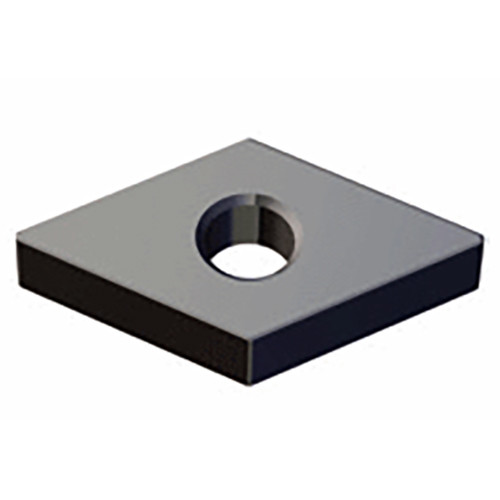

Taegutec DNGA 150608 T5 AB30

Applicable Material:, Cast Iron, Hard Materials, Fixing Hole Diameter (D1): 5.16 mm
Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2.5 mm
Cutting Edge Length (L): 15.5 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Ceramic
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
Grade: AB30
