Taegutec DNGG 130502M FU-F TT4430

Description

RHINOTURN-SWISS 55° DNGG negative ground inserts for general purpose of small parts on swiss type automatic lathes

Weight	0.0110 kg
barcode

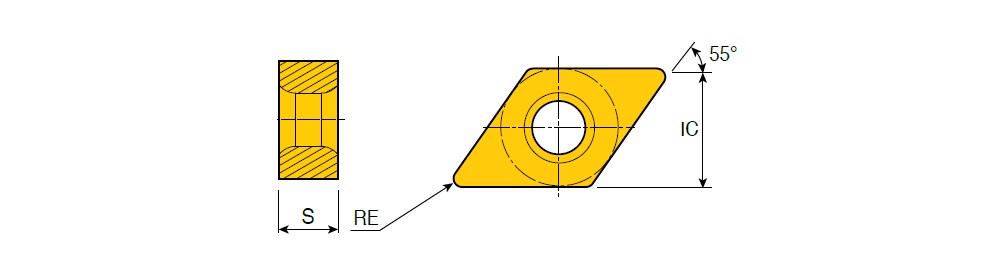

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT4430 Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Face 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.04 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.12 mm/rev Inscribed Circle Diameter (IC): 11.11 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M
