Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec DNGX 120712 T7-CH AS10
$32.77$29.79 Ex. GST

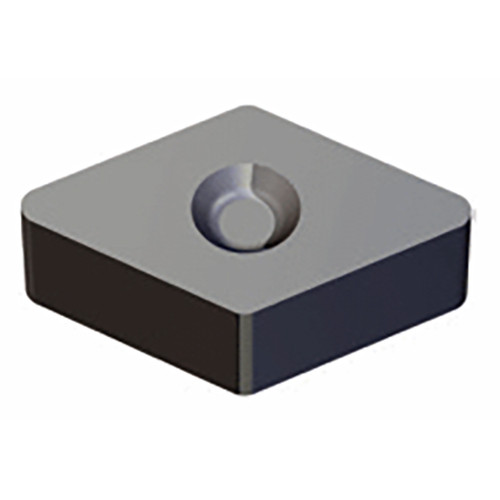

Negative 55° Rhombic ground Ceramic Dimple inserts for cast iron roughing
Applicable Material:, Cast Iron, Grade: AS10 Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.1 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.9 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 7.94 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 10 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: Si3N4 Unit: M
