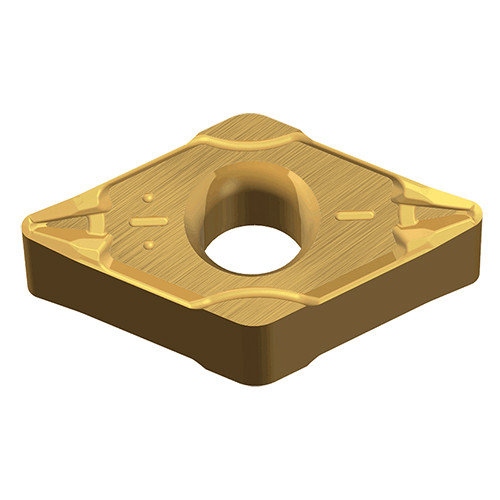

Taegutec DNMG 130502 FS TT8125B

Applicable Material:, Steel, Grade: TT8125B
Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Face 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.2 mm
Corner Radius (RE): 0.2 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 13 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 5.56 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 11.11 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
