Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec DNMG 130508 WA TT8115B
$25.61$23.28 Ex. GST

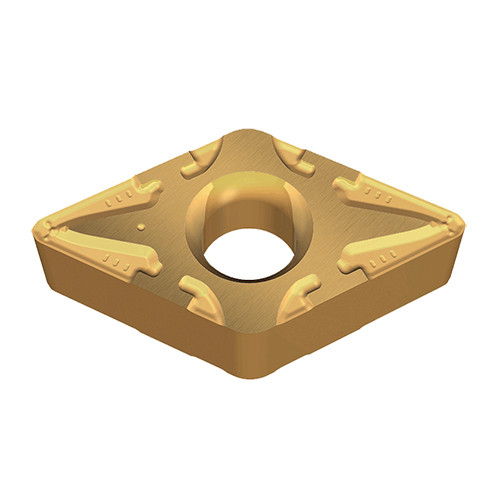

Negative 55° Rhombic RHINOTURN Wiper inserts for high feed rate and excellent surface finishing
Applicable Material:, Steel, Grade: TT8115B Application:, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Min D.O.C.: 0.25 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 11.11 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
