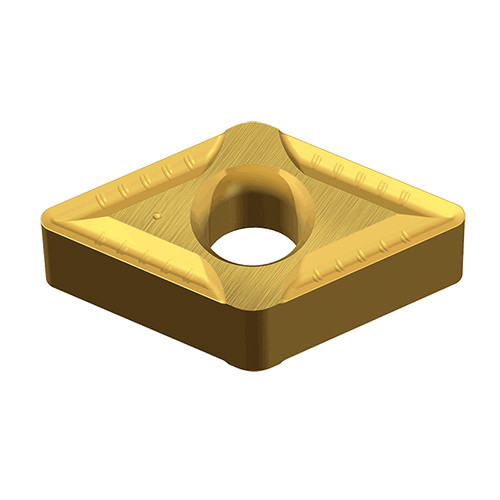

Taegutec DNMG 130512 MK TT9225

Description

Negative 55° Rhombic RHINOTURN inserts for medium machining of stainless steels and heat resistant materials with sharp cutting edges

Weight	0.0113 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225 Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Face 55° Diamond, Ext 93° App Sleeve 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Tools for Swiss Machines, Min D.O.C.: 1.5 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 4 mm Cutting Edge Length (L): 13 mm Min. Turning Feed (ft(min)): 0.23 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.5 mm/rev Inscribed Circle Diameter (IC): 11.11 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
