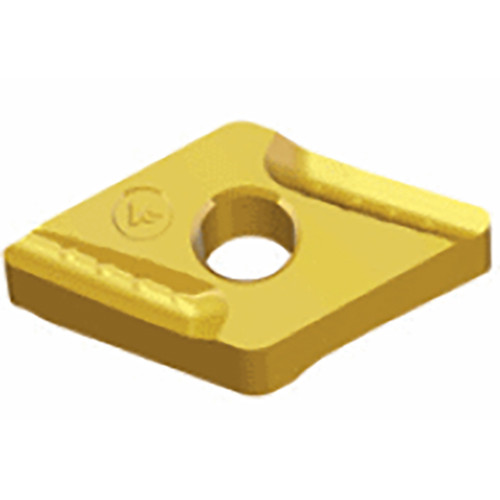

Taegutec DNMG 150404 R-VF TT8115B

Description

Negative 55° Rhombic inserts for medium machining of slender bar of steel & stainless steel without vibration from high positive rake geometry

Weight	0.0150 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8115B Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.7 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 4.5 mm Cutting Edge Length (L): 15.5 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
