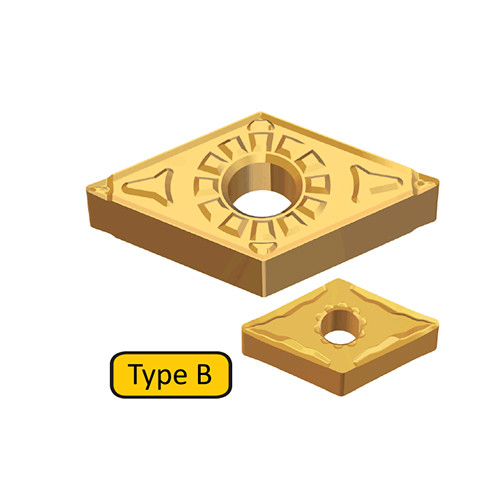

Taegutec DNMG 150408 FG PV3010

Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: PV3010
Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.7 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 14.7 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: TiN
Unit: M
