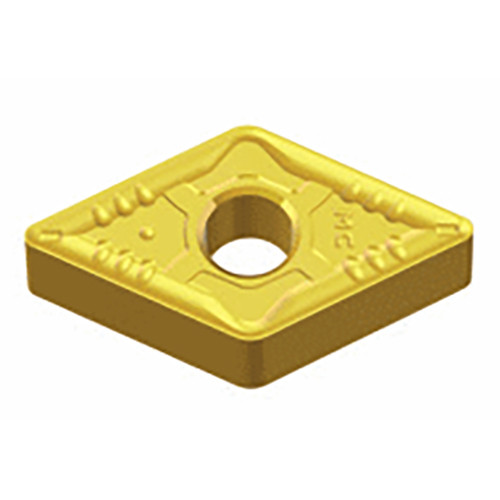

Taegutec DNMG 150408 MC TT8115B

Applicable Material:, Steel, Grade: TT8115B
Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.7 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3.5 mm
Cutting Edge Length (L): 14.7 mm
Min. Turning Feed (ft(min)): 0.12 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.35 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
