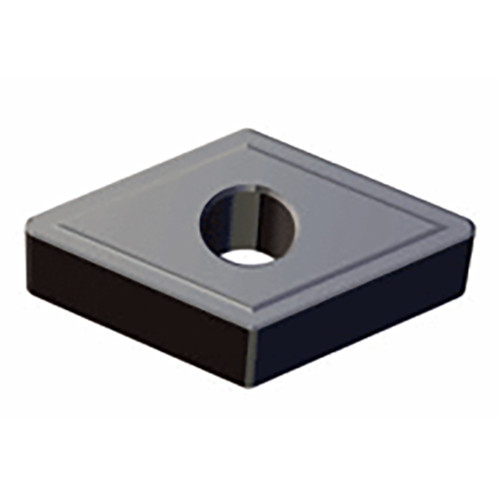

Taegutec DNMG 150608 CE AB30

Description

Negative 55° Rhombic Ceramic pressed inserts with CE chip former of reinforced T-land for cast irons & hardened steels machining

Weight	0.0075 kg
barcode

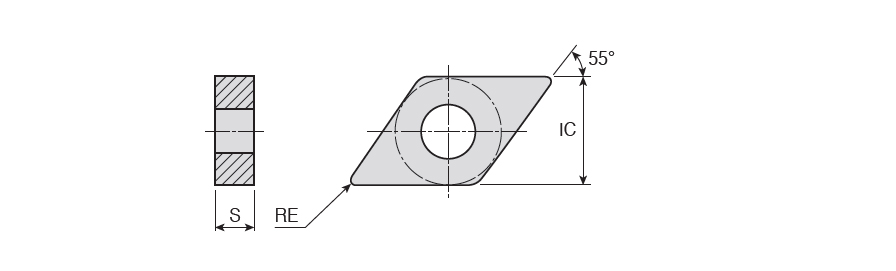

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Fixing Hole Diameter (D1): 5.16 mm Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 15.5 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: TiCN+Al2O3 Unit: M Grade: AB30
