Taegutec DNMM 150612 RX TT8125B

Description

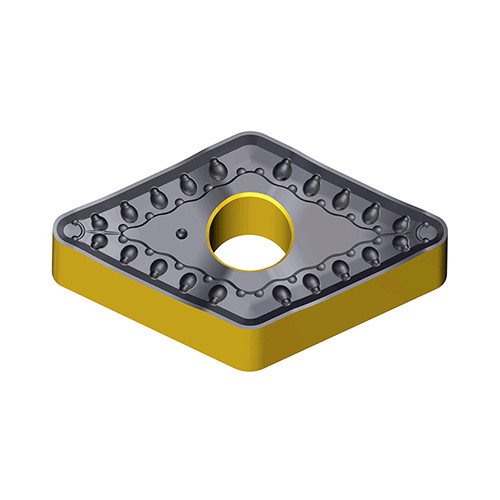

Single sided negative 55° rhombic inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Weight	0.0160 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 107.5° App 55° Diamond, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Int 95° App 55° Diamond, Min D.O.C.: 2.5 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 4.5 mm Cutting Edge Length (L): 15.5 mm Min. Turning Feed (ft(min)): 0.3 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 0.65 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
