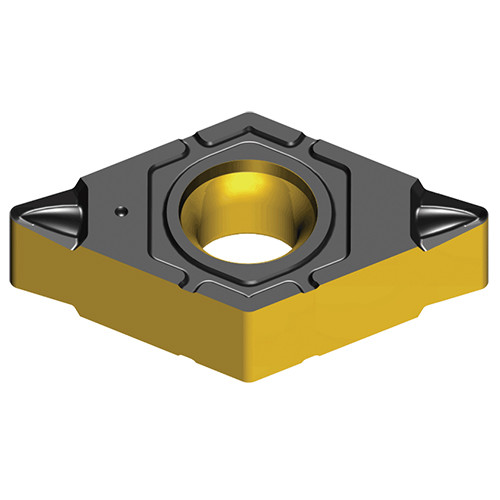

Taegutec DNMX 080308 FGP TT8125B

Applicable Material:, Steel, Grade: TT8125B
Application:, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.4 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 8.55 mm
Min. Turning Feed (ft(min)): 0.08 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
