Taegutec DNUX 130504 L11 TT5100

Product Code: 6127723

$25.61$23.28 Ex. GST

Product Code: 6127723 SKU 6127723 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

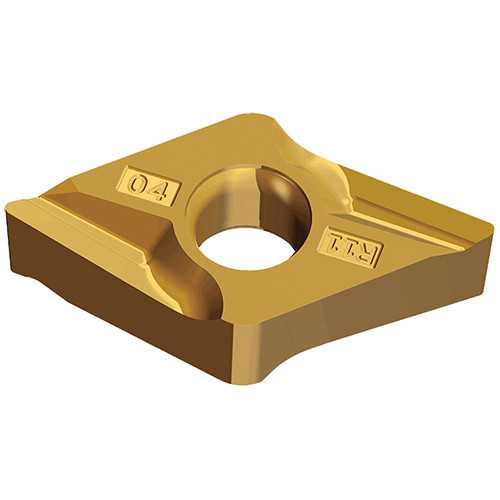

Taegutec DNUX 130504 L11 TT5100

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 55° Rhombic RHINOTURN inserts with 4 cutting edges for slender bar of steel & stainless steel machining without vibration from positive rake geometry

Additional information

Weight	0.0060 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Ext 93° App Face 55° Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Min D.O.C.: 1.5 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 4.5 mm Cutting Edge Length (L): 13 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 11.11 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M

Brand

Taegutec
