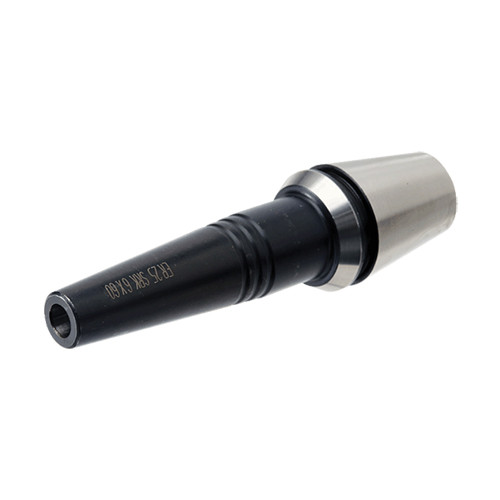

Thermal shrinking chucks with DIN 6499 ER collets for solid carbide tools
Additional information
Weight
0.1150 kg
Dimensions
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 20 mm
Application:, Collets & Accessories, Connection Diameter Workpiece Side (DCONWS): 6 mm
Thread Designation Inside (THID): M8
Shank Size (SS): ER20 mm
Clamping Length Workpiece Side (LSCWS): 24 mm
Body Length (LB): 29.5 mm
Measurement Type: Metric
Body Diameter_2 (BD_2): 11 mm
Body Material: Steel
Overall Length (OAL): 91 mm
Unit: M
