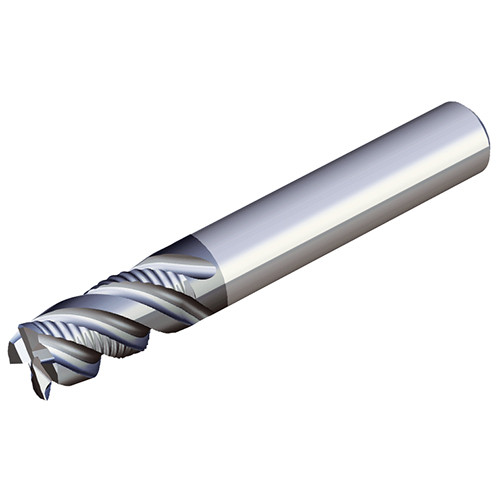

Taegutec FSM 4100M TT5525

Cutting Diameter (DC): 10 mm
End Shape: Chamfer
Connection Diameter Machine Side (DCONMS): 10 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 22 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 72 mm
Corner Chamfer Width (CHW): 0.3 mm
Cutting Edge Material: Carbide
Grade: TT5525
Coating: AlTiCrN
Body Material: Carbide
Flute Count (NOF): 4
Measurement Type: Metric
Flute Helix Angle (FHA): 45 Degrees
Unit: M
Shank Type: Round
