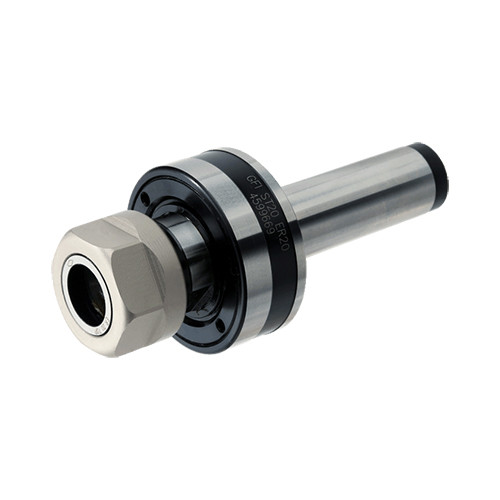

Floating reamer DIN 6499 ER collet chucks with straight shanks
Additional information
Weight
0.5600 kg
barcode
Additional Information
Connection Size (CSI): ER20
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Diameter (BD): 50 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 13 mm
Body Length Maximum (LBX): 55.5 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 20 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Shank Length (LS): 65 mm
Body Material: Steel
Application:, Reamer Collet Chucks, Unit: M
Nose Length: 34.5 mm
