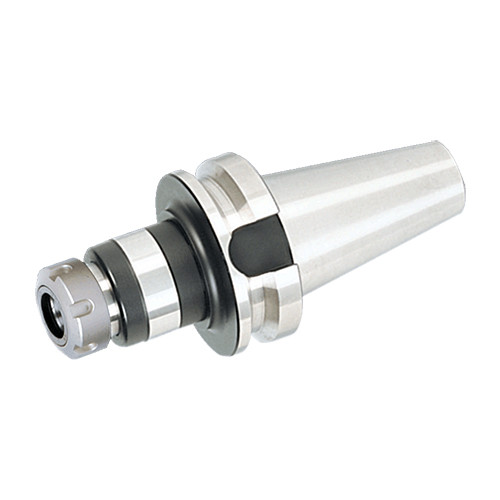

DIN 6499 ER tapping attachments with floating mechanism & BT MAS-403 form A taper shanks
Additional information
Weight
5.0400 kg
barcode
Additional Information
Connection Size (CSI): ER40
Connection Diameter Maximum Workpiece Side (DCONXWS): 26 mm
Body Diameter (BD): 63 mm
Tap Max: M28
Body Length Maximum (LBX): 133.2 mm
Tap Min: M6
Connection Diameter Machine Side (DCONMS): 50 mm
Measurement Type: Metric
Application:, Tapping, Body Material: Steel
Nose Length: 95.2 mm
Unit: M
Connection Diameter Minimum Workpiece Side (DCONNWS): 3 mm
