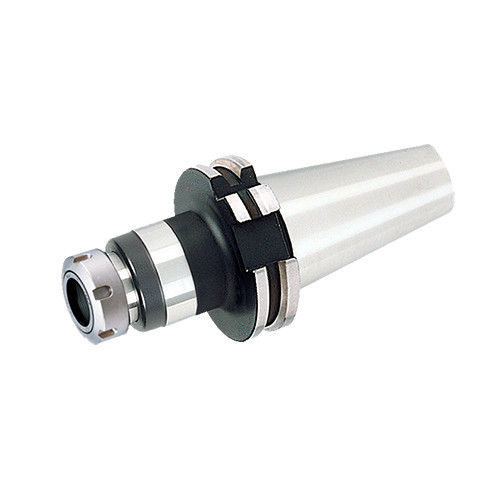

DIN 6499 ER tapping attachments with DIN 69871 form A taper shanks and floating mechanism
Additional information
Weight
2.3550 kg
barcode
Additional Information
Connection Size (CSI): ER40
Connection Diameter Maximum Workpiece Side (DCONXWS): 26 mm
Body Diameter (BD): 63 mm
Tap Max: M28
Body Length Maximum (LBX): 130.6 mm
Tap Min: M6
Connection Diameter Machine Side (DCONMS): 40 mm
Measurement Type: Metric
Application:, Tapping, Body Material: Steel
Nose Length: 111.5 mm
Unit: M
Connection Diameter Minimum Workpiece Side (DCONNWS): 3 mm
