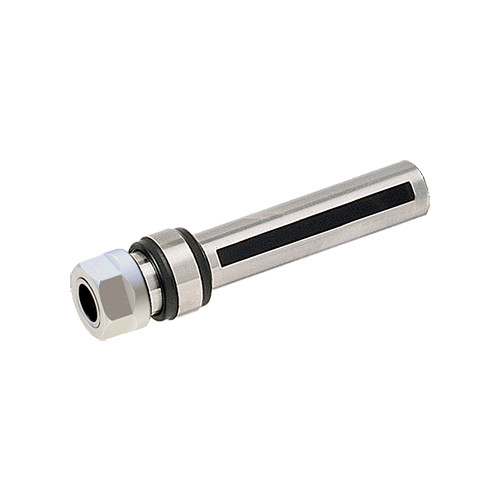

DIN 6499 ER tapping attachments with straight shanks and floating mechanism
Additional information
Weight
0.2100 kg
barcode
Additional Information
Connection Size (CSI): ER11
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Diameter (BD): –
Connection Diameter Maximum Workpiece Side (DCONXWS): 7 mm
Body Length Maximum (LBX): –
Tap Max: M7
Connection Diameter Machine Side (DCONMS): 16 mm
Tap Min: M2
Shank Length (LS): 150 mm
Measurement Type: Metric
Application:, Tapping, Body Material: Steel
Nose Length: 19 mm
Unit: M
