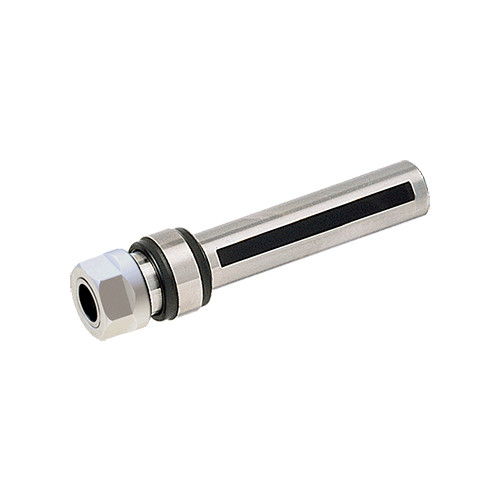

DIN 6499 ER tapping attachments with straight shanks and floating mechanism
Additional information
Weight
0.3150 kg
barcode
Additional Information
Connection Size (CSI): ER16
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Diameter (BD): 29.5 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 10 mm
Body Length Maximum (LBX): 41.6 mm
Tap Max: M10
Connection Diameter Machine Side (DCONMS): 20 mm
Tap Min: M3
Shank Length (LS): 80 mm
Measurement Type: Metric
Application:, Tapping, Body Material: Steel
Nose Length: 24.6 mm
Unit: M
