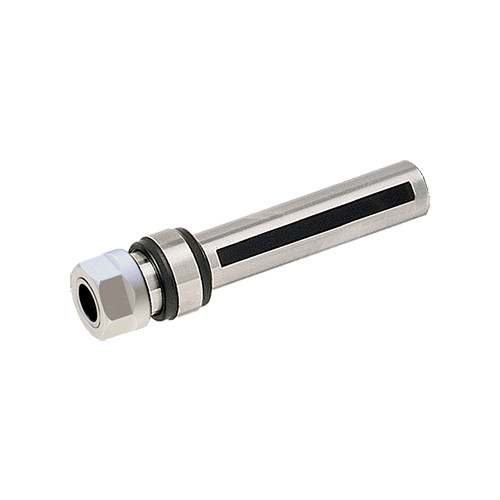

DIN 6499 ER tapping attachments with straight shanks and floating mechanism
Additional information
Weight
1.2400 kg
barcode
Additional Information
Connection Size (CSI): ER32
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Diameter (BD): 56.5 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 16 mm
Body Length Maximum (LBX): 77.2 mm
Tap Max: M20
Connection Diameter Machine Side (DCONMS): 25 mm
Tap Min: M6
Shank Length (LS): 80 mm
Measurement Type: Metric
Application:, Tapping, Body Material: Steel
Nose Length: 32 mm
Unit: M
