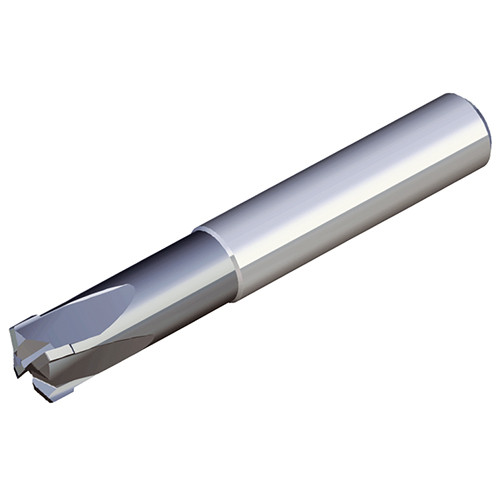

Taegutec HFM 4100 TT5515

Cutting Diameter (DC): 10 mm
Usable Length (LU): 28 mm
Connection Diameter Machine Side (DCONMS): 10 mm
Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 4 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 68 mm
Corner Radius (RE): 0.3 mm
Cutting Edge Material: Carbide
Grade: TT5515
Coating: AlTiCrN
Neck Diameter (DN): 9.2
Flute Count (NOF): 4
Body Material: Carbide
Flute Helix Angle (FHA): 10 Degrees
Measurement Type: Metric
Shank Type: Round
Unit: M
End Shape: Corner Radius
