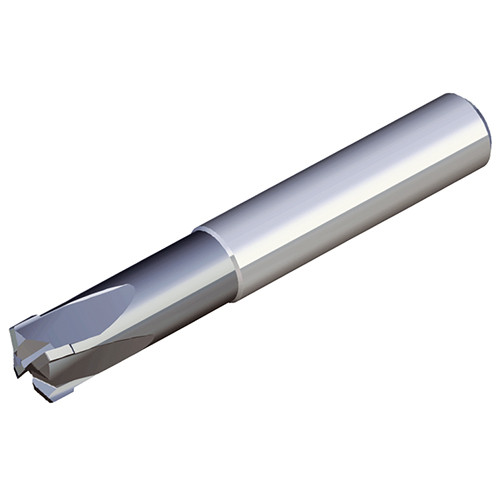

Taegutec HFM 4120 TT5515

Cutting Diameter (DC): 12 mm
Usable Length (LU): 33 mm
Connection Diameter Machine Side (DCONMS): 12 mm
Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 5 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 76 mm
Corner Radius (RE): 0.3 mm
Cutting Edge Material: Carbide
Grade: TT5515
Coating: AlTiCrN
Neck Diameter (DN): 11
Flute Count (NOF): 4
Body Material: Carbide
Flute Helix Angle (FHA): 10 Degrees
Measurement Type: Metric
Shank Type: Round
Unit: M
End Shape: Corner Radius
