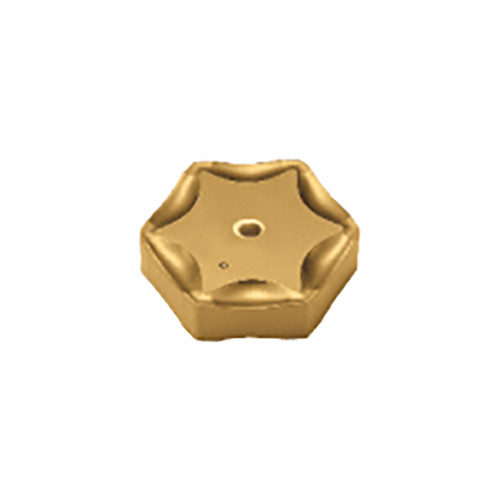

HEXA2MILL medium-roughing insert for cast iron machining.
Additional information
Weight
0.0280 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth
Cutting Edge Length (L): 8 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 1 mm
Minimum Feed per Tooth (fz(min)): 0.125 mm/tooth
Depth of Cut Maximum (APMX): 6.4 mm
Number of Cutting Edges: 12
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Insert Thickness (S): 5.8 mm
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
