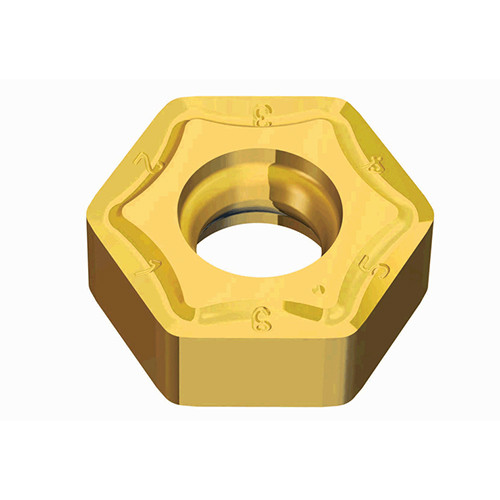

Taegutec HNCX 050410-L TT6080

Product Code: 5615796

$29.60$26.91 Ex. GST

Product Code: 5615796 SKU 5615796 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Sharp and positive cutting edges for light milling and low cutting force. For difficult-to-cut material such as low carbon steel, stainless steel as well as cast iron.

Additional information

Weight	0.0088 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 4 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12.7 mm Body Material: Carbide Insert Thickness (S): 5 mm Unit: M Coating: AlTiN+TiN
