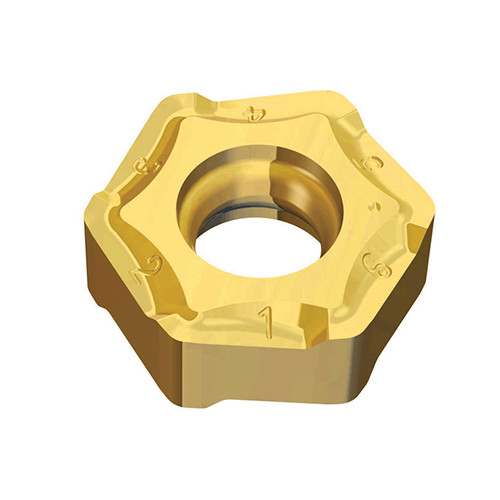

Taegutec HNCX 050410R-MP TT6080

Product Code: 5615848

$29.60$26.91 Ex. GST

Product Code: 5615848 SKU 5615848 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Helical geometry with right hand cutting edge for reducing cutting load HEXA2MILL insert Maximum depth of cut 5mm on steel and cast iron.

Weight	0.0086 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.22 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12.7 mm Body Material: Carbide Insert Thickness (S): 5 mm Unit: M Coating: AlTiN+TiN
