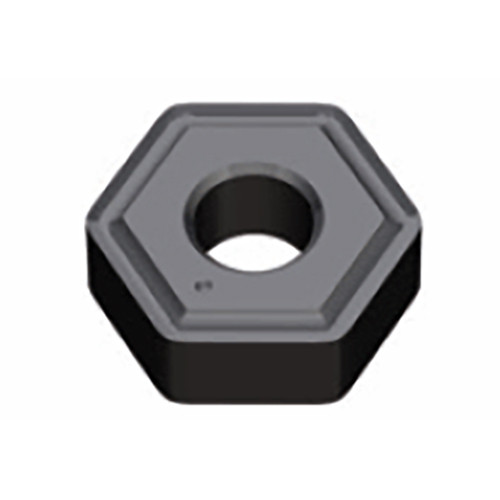

Taegutec HNMG 050408 SU TT5100

Applicable Material:, Steel, Stainless Steel, Grade: TT5100
Application:, Ext 45° App 120° Hxagonal, Inserts, Int 45° App 120° Hexagonal, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3.5 mm
Cutting Edge Length (L): 6.2 mm
Min. Turning Feed (ft(min)): 0.15 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
