Taegutec HSB 2008 008 020 TT5505

Product Code: 6126978

$84.66$76.96 Ex. GST

Product Code: 6126978 SKU 6126978 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

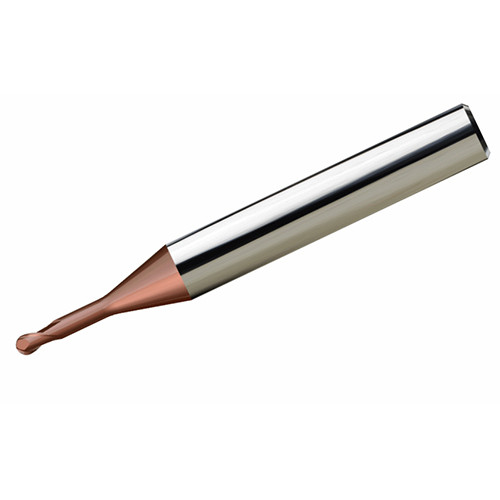

High precision solid carbide ball nose end mills with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel

Weight	0.0110 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 0.8 mm Applicable Material:, Steel, Hard Materials, Connection Diameter Machine Side (DCONMS): 4 mm Application:, Profiling, Solid Carbide End Mills, Depth of Cut Maximum (APMX): 0.8 mm Corner Radius (RE): 0.4 mm Overall Length (OAL): 45 mm Neck Diameter (DN): 0.75 Cutting Edge Material: Carbide Grade: TT5505 Coating: AlTiN Body Material: Carbide Flute Count (NOF): 2 Measurement Type: Metric Shank Type: Round Unit: M Usable Length (LU): 2 mm
