Taegutec HSB 2015S 025 045 TT5505

Product Code: 6127090

$69.85$63.50 Ex. GST

Product Code: 6127090 SKU 6127090 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

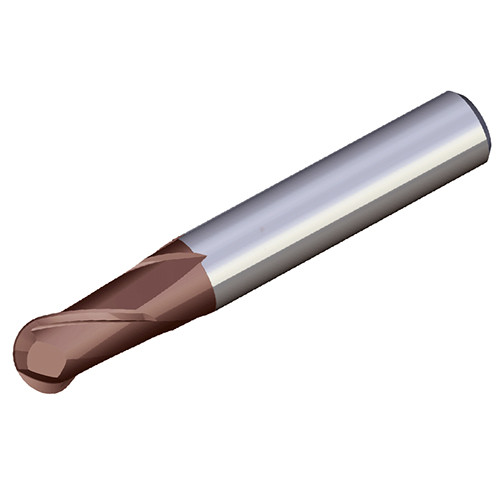

High precision solid carbide ball nose end mills of short type & 2 flute for high speed machining of hardened steel and pre-hardened steel

Weight	0.0150 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 1.5 mm Applicable Material:, Steel, Hard Materials, Connection Diameter Machine Side (DCONMS): 6 mm Application:, Profiling, Solid Carbide End Mills, Depth of Cut Maximum (APMX): 2.5 mm Corner Radius (RE): 0.75 mm Overall Length (OAL): 38 mm Neck Diameter (DN): 1.45 Cutting Edge Material: Carbide Grade: TT5505 Coating: AlTiN Body Material: Carbide Flute Count (NOF): 2 Measurement Type: Metric Shank Type: Round Unit: M Usable Length (LU): 4.5 mm
