Taegutec HSB 4080M 120 200 TT5505

Product Code: 6127101

$114.28$103.89 Ex. GST

Product Code: 6127101 SKU 6127101 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

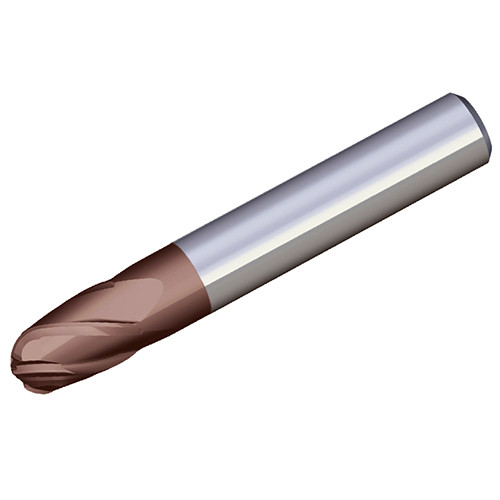

High precision solid carbide ball nose end mills of medium type & 4 flute for high speed machining of hardened steel and pre-hardened steel

Weight	0.0715 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 8 mm Applicable Material:, Steel, Hard Materials, Connection Diameter Machine Side (DCONMS): 8 mm Application:, Profiling, Solid Carbide End Mills, Depth of Cut Maximum (APMX): 12 mm Corner Radius (RE): 4 mm Overall Length (OAL): 90 mm Neck Diameter (DN): 7.9 Cutting Edge Material: Carbide Grade: TT5505 Coating: AlTiN Body Material: Carbide Flute Count (NOF): 4 Measurement Type: Metric Shank Type: Round Unit: M Usable Length (LU): 20 mm
