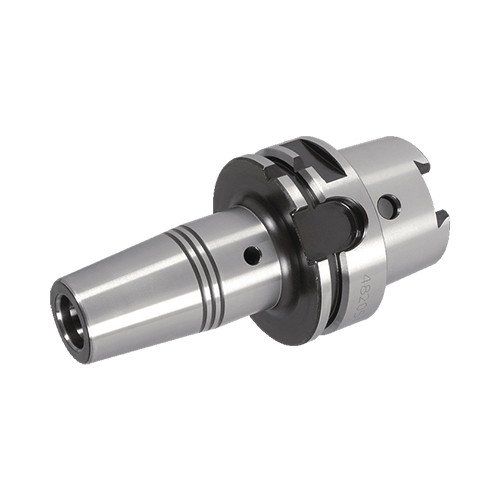

Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools
Additional information
Weight
2.3650 kg
Dimensions
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 100 mm
Thread Designation Inside (THID): M6
Connection Diameter Workpiece Side (DCONWS): 8 mm
Clamping Length Workpiece Side (LSCWS): 36 mm
Shank Size (SS): 100 mm
Usable Length (LU): 85 mm
Body Length (LB): 38 mm
Measurement Type: Metric
Body Diameter_2 (BD_2): 27 mm
Body Material: Steel
Overall Length (OAL): 135 mm
Unit: M
Application:, HSK DIN 69893
