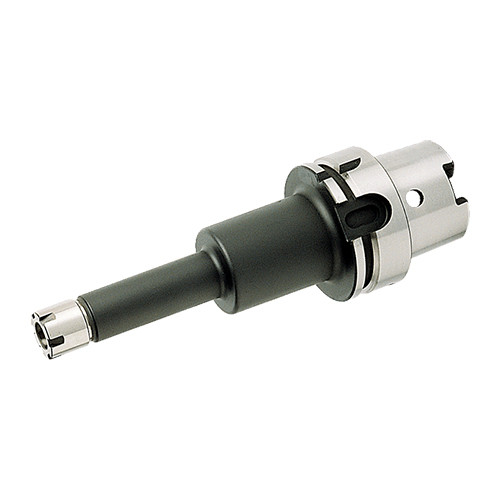

DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks
Additional information
Weight
1.3950 kg
barcode
Additional Information
Connection Size (CSI): ER16
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Diameter (BD): 22 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 10 mm
Body Length Maximum (LBX): 160 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 63 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M10
Body Material: Steel
Application:, HSK DIN 69893, Unit: M
Nose Length: 134 mm
