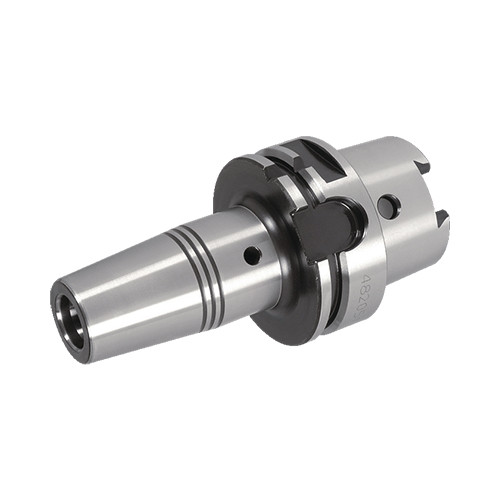

Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools
Additional information
Weight
1.7900 kg
Dimensions
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 63 mm
Thread Designation Inside (THID): M16
Connection Diameter Workpiece Side (DCONWS): 25 mm
Clamping Length Workpiece Side (LSCWS): 58 mm
Shank Size (SS): 63 mm
Usable Length (LU): 115 mm
Body Length (LB): 55 mm
Measurement Type: Metric
Body Diameter_2 (BD_2): 53 mm
Body Material: Steel
Overall Length (OAL): 147 mm
Unit: M
Application:, HSK DIN 69893
