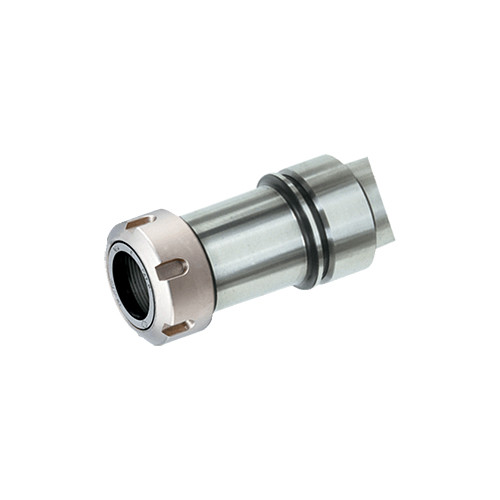

DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shanks
Additional information
Weight
0.5420 kg
barcode
Additional Information
Connection Size (CSI): ER25
Connection Diameter Minimum Workpiece Side (DCONNWS): 1 mm
Body Diameter (BD): 42 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 16 mm
Body Length Maximum (LBX): 80 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M18X1.5
Body Material: Steel
Application:, HSK DIN 69893, Unit: M
Nose Length: 60 mm
