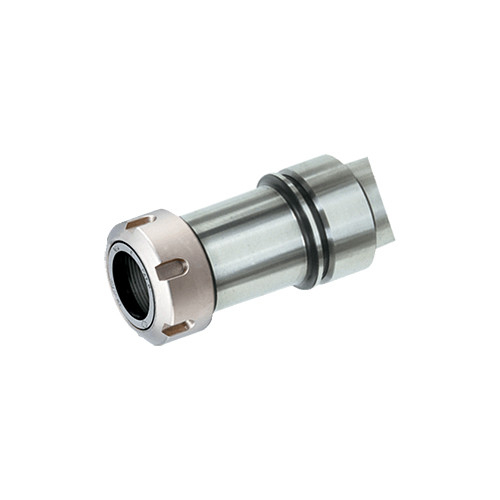

DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shanks
Additional information
Weight
0.6350 kg
barcode
Additional Information
Connection Size (CSI): ER16
Connection Diameter Minimum Workpiece Side (DCONNWS): 0.5 mm
Body Diameter (BD): 28 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 10 mm
Body Length Maximum (LBX): 80 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 50 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Connection Thread Nominal Size Machine Side (THSZMS): M10
Body Material: Steel
Application:, HSK DIN 69893, Unit: M
Nose Length: 54 mm
