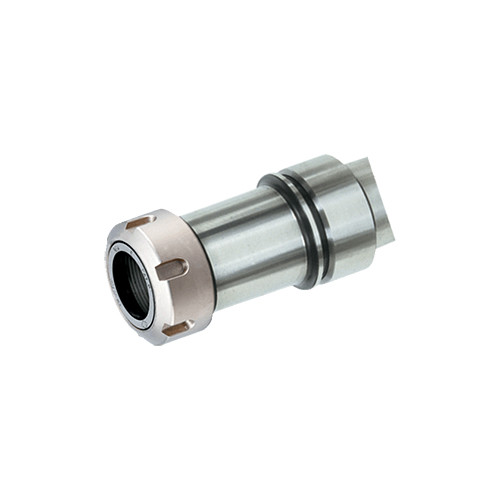

DIN 6499 ER collet chucks with HSK DIN 69893 form E taper shanks
Additional information
Weight
0.8300 kg
barcode
Additional Information
Connection Size (CSI): ER32
Connection Diameter Minimum Workpiece Side (DCONNWS): 2 mm
Body Diameter (BD): 50 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 20 mm
Body Length Maximum (LBX): 80 mm
Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 50 mm
Connection Diameter Workpiece Side (DCONWS): 0 mm
Application:, HSK DIN 69893, Body Material: Steel
Nose Length: 54 mm
Unit: M
