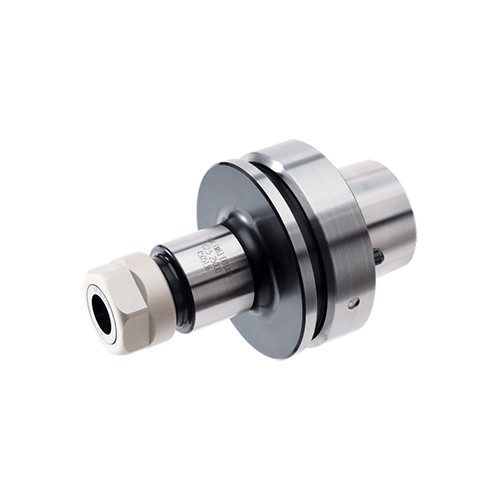

DIN 6499 ER collet chucks with HSK DIN 69893 FM taper shanks
Additional information
Weight
1.4700 kg
barcode
Additional Information
Connection Size (CSI): ER40
Nose Length: 74 mm
Body Diameter (BD): 63 mm
Connection Diameter Minimum Workpiece Side (DCONNWS): 3 mm
Body Length Maximum (LBX): 100 mm
Connection Diameter Maximum Workpiece Side (DCONXWS): 26 mm
Connection Diameter Machine Side (DCONMS): 63 mm
Measurement Type: Metric
Connection Thread Nominal Size Machine Side (THSZMS): M28X1.5
Body Material: Steel
Application:, HSK DIN 69893, Unit: M
