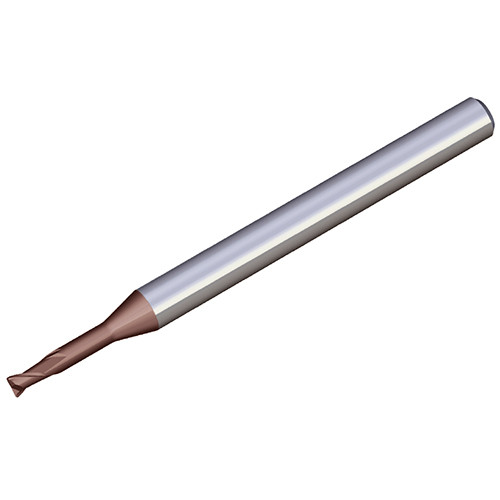

Taegutec HSR 2030 020 100 TT5505

Cutting Diameter (DC): 3 mm
Usable Length (LU): 10 mm
Connection Diameter Machine Side (DCONMS): 6 mm
Applicable Material:, Steel, Hard Materials, Depth of Cut Maximum (APMX): 4.5 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 55 mm
Corner Radius (RE): 0.2 mm
Cutting Edge Material: Carbide
Grade: TT5505
Coating: AlTiN
Neck Diameter (DN): 2.85
Flute Count (NOF): 2
Body Material: Carbide
Flute Helix Angle (FHA): 30 Degrees
Measurement Type: Metric
Shank Type: Round
Unit: M
End Shape: Corner Radius
