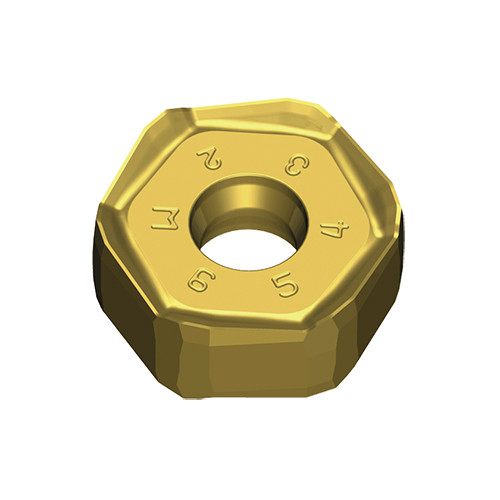

Taegutec HXKU 1007 ANR-M TT9080

Product Code: 6307382

$37.10$33.73 Ex. GST

Product Code: 6307382 SKU 6307382 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided inserts with Economical 12 cutting edges for steel and cast iron roughing in maximum depth of cut Ap 5.0 mm with reinforced cutting edges

Additional information

Weight	0.0274 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.45 mm/tooth Application:, Chamfer & Serration, Facing, Inserts, Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 5 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 19.05 mm Number of Cutting Edges: 12 Insert Thickness (S): 8.3 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M
