Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec KNUX 160405 R11 TT8135B
$28.22$25.65 Ex. GST

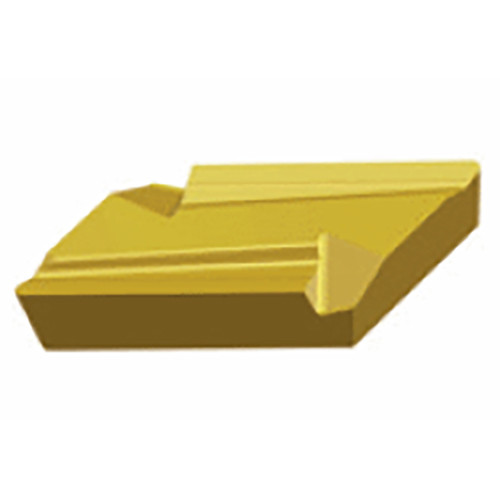

Negative single-side 55° Parallelogram inserts for profiling with positive cutting edges
Applicable Material:, Steel, Grade: TT8135B Application:, Ext 62.5° App 55° Diamond, Ext 93° App 55°Diamond, Inserts, Int 100° App 70° Diamond, Int 93° App 55° Diamond, Min D.O.C.: 1.5 mm Corner Radius (RE): 0.5 mm Depth of Cut Maximum (APMX): 5 mm Cutting Edge Length (L): 19.72 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
