Taegutec LCD 200-209-25T2-5D

Product Code: 6144850

$696.88$633.53 Ex. GST

Product Code: 6144850 SKU 6144850 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

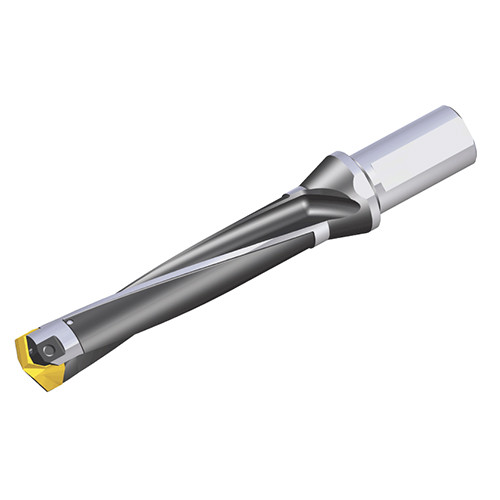

SPADERUSH head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 5XD

Additional information

Weight 0.8500 kg
barcode
Additional Information

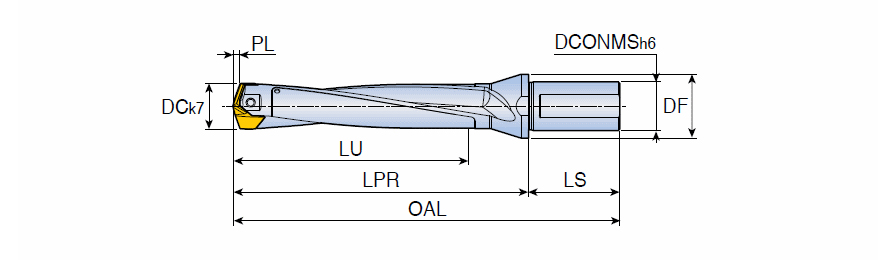

Cutting Diameter (DC): 20 mm
Point Length (PL): 3.11 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-200-P
Protruding Length (LPR): 132.1 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Insert Seat Size Code (SSC): 20
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
