Taegutec LCD 220-229-25T2-3D

Product Code: 6192334

$727.95$661.77 Ex. GST

Product Code: 6192334 SKU 6192334 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

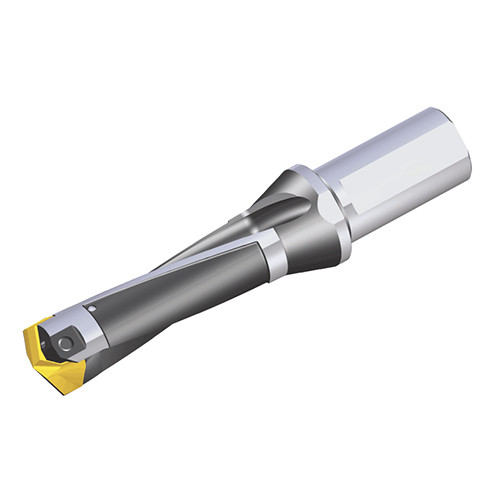

SPADERUSH Head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 3XD

Additional information

Weight 0.4800 kg
barcode
Additional Information

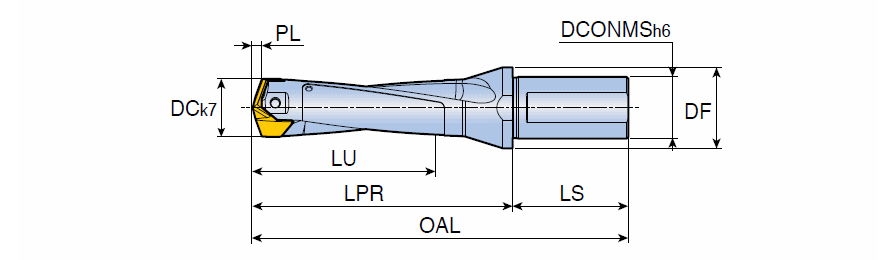

Cutting Diameter (DC): 22 mm
Point Length (PL): 3.42 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-220-P
Protruding Length (LPR): 98.4 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Insert Seat Size Code (SSC): 22
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
