Taegutec LCD 240-249-32T2-3D

Product Code: 6192336

$804.86$731.69 Ex. GST

Product Code: 6192336 SKU 6192336 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

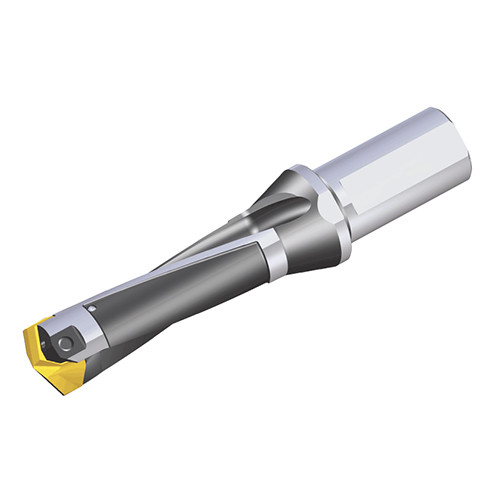

SPADERUSH Head changeable drill of large diameter for high productivity with coolant holes in drilling depth of 3XD

Additional information

Weight 0.6500 kg
barcode
Additional Information

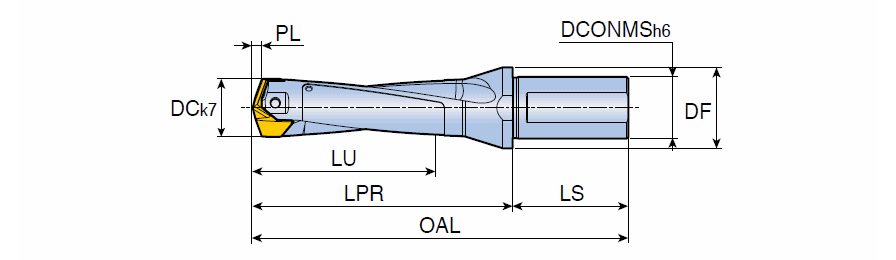

Cutting Diameter (DC): 24 mm
Point Length (PL): 3.73 mm
Application:, Drilling, Master Insert Identification (MIID): LCD-240-P
Protruding Length (LPR): 110.7 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Insert Seat Size Code (SSC): 24
Body Material: Steel
Measurement Type: Metric
Unit: M

Brand

Taegutec
